FIRELO TAB – Autonomous Aerosol Fire Suppression Module

38,75 € s 23 % DPH / incl. 23% VAT

You can purchase this product after confirming our quotation. First send a non-binding inquiry; the final price, availability, shipping and payment are confirmed in the quotation. Sending an inquiry creates no obligation to pay.

Where is FIRELO TAB installed? Inside small enclosed electrical cabinets, PC cases, server enclosures and enclosed 3D printer housings. The product description specifies adhesive mounting on the inside upper surface. Confirm the exact mounting position, clearances and suitability in the installation instructions.

The Ultimate “Set-and-Forget” Fire Protection for Enclosed Spaces.

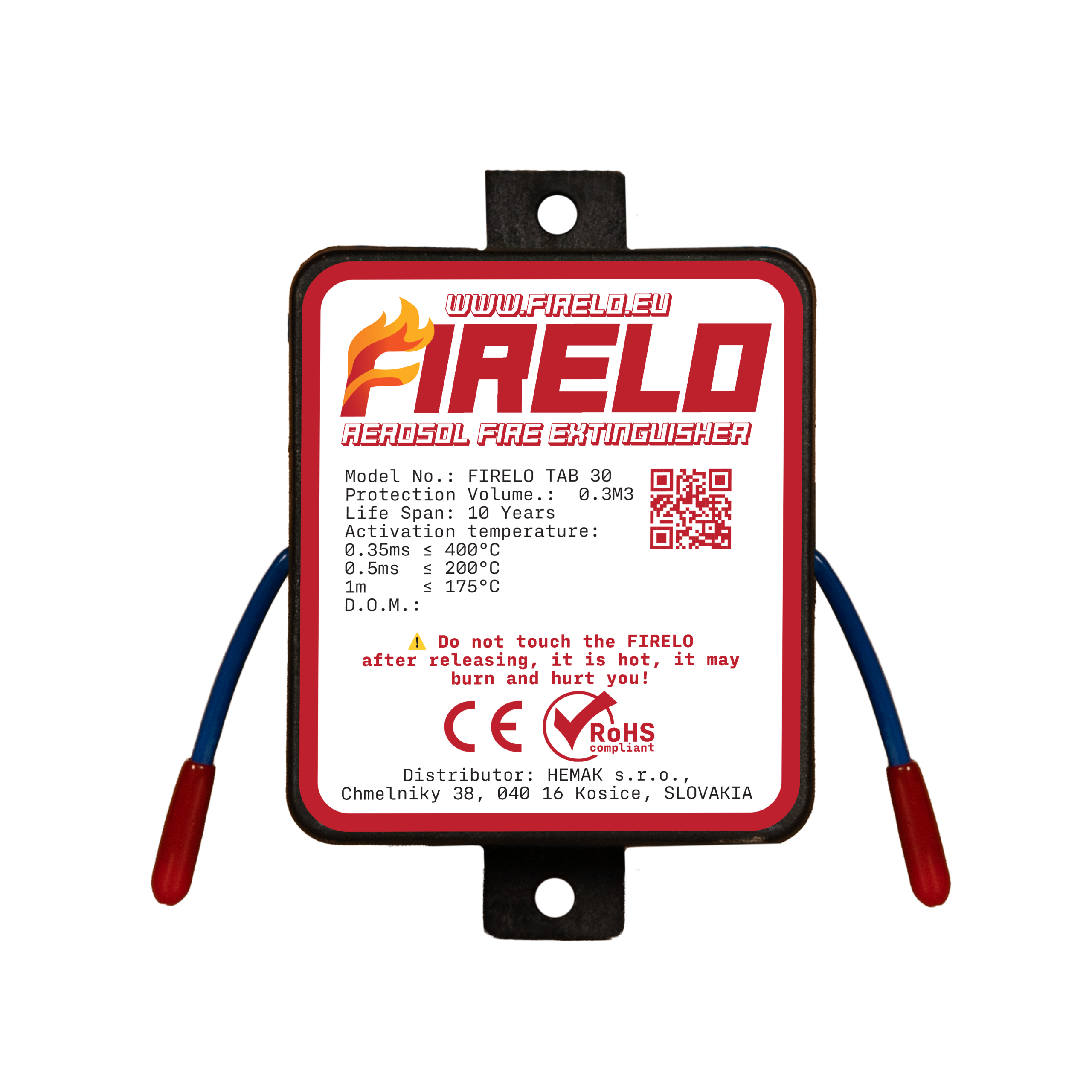

The FIRELO TAB is a passive, solid-state fire extinguishing module engineered for localized protection of high-risk enclosed environments. It functions as a completely autonomous “fire-killing” unit that requires no external monitoring, no pressure vessels, and no power supply.

Equipped with a high-sensitivity thermal activation cord, the device triggers instantly when the ambient temperature reaches 170°C or comes into direct contact with a flame.

Description

The Ultimate “Set-and-Forget” Fire Protection for Enclosed Spaces.

The FIRELO TAB is a passive, solid-state fire extinguishing module engineered for localized protection of high-risk enclosed environments. It functions as a completely autonomous “fire-killing” unit that requires no external monitoring, no pressure vessels, and no power supply.

Equipped with a high-sensitivity thermal activation cord, the device triggers instantly when the ambient temperature reaches 170°C or comes into direct contact with a flame.

Key Features:

  • Molecular Suppression: Unlike traditional extinguishers that starve a fire of oxygen, FIRELO TAB interrupts the combustion chain reaction at a molecular level.

  • Electronics Friendly: The potassium-based aerosol cloud is non-conductive and non-corrosive, meaning it won’t damage your sensitive electronic components.

  • Zero Maintenance: No annual pressure checks or refills. Simply perform a visual inspection occasionally.

  • Instant Installation: Features a pre-applied 3M High-Bond Industrial Adhesive for secure mounting on the interior ceiling of any enclosure.

  • 10-Year Lifespan: Reliable long-term protection for your most critical assets.

Best For:

  • Desktop PC Towers and server enclosures.

  • 3D Printer safety enclosures.

  • High-load power outlet strips and small electrical cabinets.

  • Small engine bays and battery compartments.


Engineering Specifications:

Feature Specification
Active Medium S-Type Condensed Aerosol
Volume Coverage Up to 300 Liters (0.3 m³)
Reaction Delay Zero (Immediate upon reaching threshold)
Activation Temp 170°C (Thermal Cord)
Installation High-Bond 3M Industrial Adhesive
Operating Temp -50°C to +95°C
Dimensions 65mm x 56mm x 28mm
Maintenance None (Visual inspection only)

Technical documents and safe use

FIRELO catalogue — English PDF

Country of origin: Made in China. Importer and distributor: HEMAK, s.r.o.

Confirm the exact model, protected volume, activation temperature, installation clearances, service life and permitted application in the technical documentation. A device does not automatically replace a fire protection design. Do not activate it as a test. Battery suitability requires evidence for the specific configuration.
